What is a GeCKO Library? How to Achieve "High-Fidelity" Plasmid Amplification?

What is a GeCKO Library? How to Achieve "High-Fidelity" Plasmid Amplification?

CRISPR-Cas9 has become the standard tool in functional genomics, especially for genome-wide screens. When discussing genome-wide CRISPR screening, the GeCKO (Genome-scale CRISPR Knock-Out) library is impossible to overlook. This article covers:

Basic concepts of the GeCKO v2 library

Why "high-fidelity" library plasmid amplification is critical

How to perform high-fidelity library amplification in the lab

I. Introduction to the GeCKO v2 Library

The GeCKO v2 library is a genome-wide sgRNA library widely used for gene knockout research, covering both human and mouse genomes.

Species coverage: Human and mouse versions available.

Library scale:

Human library: 123,411 sgRNAs

Mouse library: 130,209 sgRNAs

Design: The library targets early exons of each gene for CRISPR-mediated knockout. Each gene is covered by 6 sgRNAs split between two sub-libraries (Library A and Library B):

Library A: 3 sgRNAs per gene

Library B: 3 sgRNAs per gene

Full library: Merging A and B gives 6 sgRNAs per gene.

Both sub-libraries include ~1,000 control sgRNAs. Library A also targets miRNAs (4 sgRNAs each) for non-coding regulatory studies.

GeCKO v2 offers two vector systems:

Single-vector: lentiCRISPR v2 — Cas9 and sgRNA in one vector, simpler but lower viral titer

Dual-vector: lentiCas9-Blast + lentiGuide-Puro — for large-scale screens; requires stable Cas9 cell line first

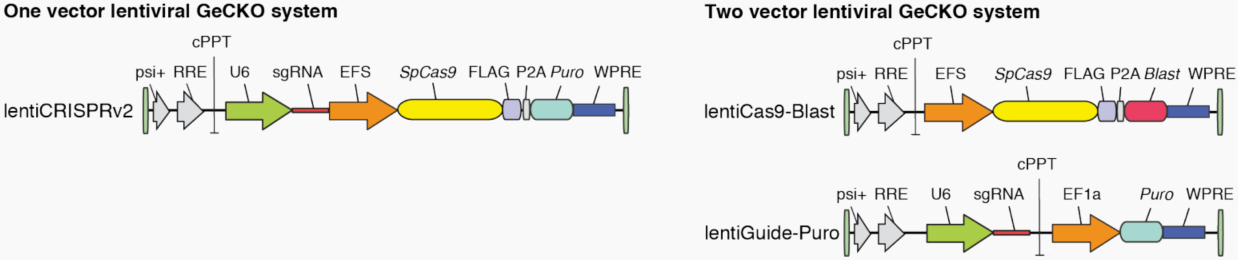

Figure 1. Structural diagram of GeCKO v2 single-vector and dual-vector lentiviral systems

II. Why Is Library Plasmid Amplification So Critical?

GeCKO v2 is a "pooled library" — a single tube contains tens of thousands of different plasmids, each encoding a unique sgRNA. Improper amplification can cause:

Library imbalance: some constructs are "preferentially" amplified, skewing their representation

sgRNA loss: some sgRNAs drop out during amplification, resulting in incomplete data

This is known as the library bottleneck effect. To avoid it, the original protocol requires:

Electroporation must be used — not standard chemical competent cells

Large-plate culture is required — not liquid shaker culture

At least 50x clone coverage is required — minimum 50 independent colonies per sgRNA

Culture at 32°C to minimize recombination risk in the lentiviral LTR region

III. Step-by-Step GeCKO v2 Library Amplification Protocol

Following the GeCKO original protocol, the key steps are:

Step 1: Prepare Library DNA

Dilute frozen GeCKO library plasmid to 50 ng/μL; minimize freeze-thaw cycles to maintain DNA quality.

Step 2: Electroporate Electrocompetent Bacteria

Use electrocompetent cells (e.g., NEB DH5α) with transformation efficiency ≥10⁹ cfu/μg DNA

Electroporate 25 μL electrocompetent cells with 2 μL library DNA using recommended settings.

Step 3: Calculate Transformation Efficiency

Plate dilutions and count colonies to verify coverage. The target is at least 50× clone coverage.

Step 4: Large-Plate Culture

Spread bacteria evenly on suitable plates (10 cm), culture at 32°C for 14 hours to avoid colony death phase.

Step 5: Harvest Colonies and Perform Maxi-Prep

Collect colonies with a sterile scraper into LB, centrifuge to pellet bacteria, then extract using a commercial Maxi-Prep kit.

IV. From Library to Screen: Next Steps and Key Considerations

After amplification, proceed to lentiviral packaging and screening:

Co-transfect HEK293T/293FT cells with:

Library vector (e.g., lentiCRISPR v2 or lentiGuide-Puro）；

Packaging plasmid psPAX2

Envelope plasmid pMD2.G

Prepare lentivirus following biosafety protocols, ensuring uniform sgRNA distribution with no dropouts.

Conclusion: Every Step Builds the Foundation for a High-Quality Screen

For researchers new to GeCKO library amplification may seem tedious, but its importance cannot be overstated. Failure to follow the protocol strictly at the amplification stage will compromise the statistical validity of downstream screening results. Strict adherence to the original protocol ensures library quality and sets the foundation for experimental success.

Case Study: GeCKO Library Quality Control in Practice

In our Shutong laboratory, QC of the GeCKO v2 library is a critical step. Below are quality metrics for two sub-libraries (A and B):

Library A Quality Metrics:

Total sgRNA：63950

Zero Counts：139

Gini Index：0.09668

Coverage (%)：99.7826%

Depth：209.99

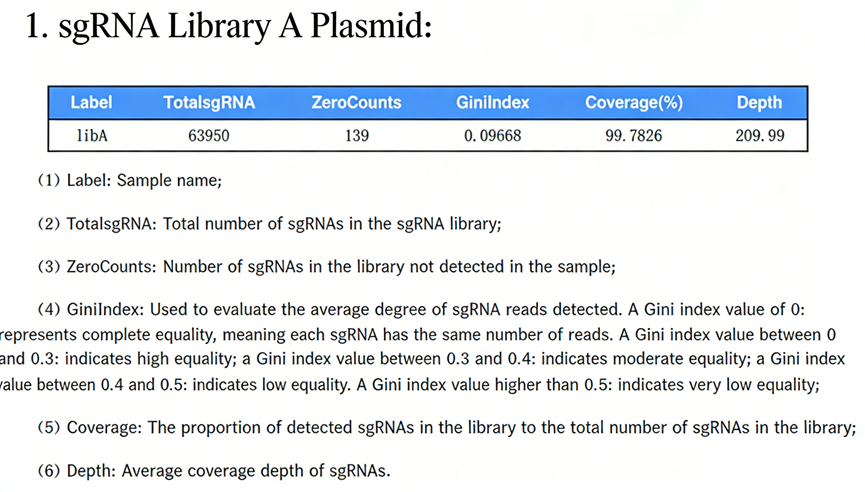

Figure 2. Library A plasmid QC metrics table and indicator description

Library B Quality Metrics:

Total sgRNA：56869

Zero Counts：30

Gini Index：0.08752

Coverage (%)：99.9472%

Depth：243.47

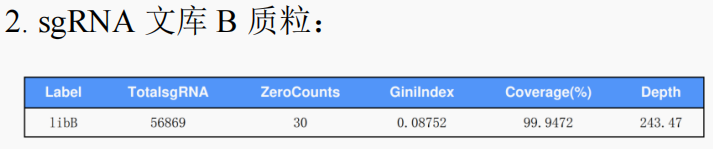

Figure 3. Library B plasmid QC metrics table

These data show that despite differences in sgRNA count and Zero Counts between the two libraries, both achieved high coverage (>99%), ensuring reliable results. The Gini Index indicates more uniform sgRNA distribution, greatly reducing experimental bias. These QC data demonstrate strict adherence to protocols during amplification, ensuring statistical validity for downstream screens.

References:

Sanjana, N.E., Shalem, O., Zhang, F. "Improved lentiviral vectors and genome-wide libraries for CRISPR screening." Nature Methods (2014).

Shalem, O., Sanjana, N.E., Hartenian, E., Shi, X., Scott, D.A., Mikkelsen, T., Heckl, D., Ebert, B.L., Root, D.E., Doench, J.G., Zhang, F. "Genome-scale CRISPR-Cas9 knockout screening in human cells." Science, 343, 83-7. DOI: 10.1126/science.1247005.
